Hardware compatibility
Find your interface
DMXDesktop drives USB DMX interfaces, Art-Net / sACN nodes and MIDI control surfaces on Mac and Windows. Here is everything it talks to - and exactly what each device can do.
- 30+
- Interfaces & nodes supported
- USB · Art-Net · sACN
- Output protocols
- Mac & Windows
- Native apps
- Art-Net / sACN
- DMX input (Pro tier)
USB DMX interfaces
Plug in over USB and go. DMXDesktop auto-detects most interfaces and applies the right driver. USB is output-only - to capture DMX into the software, use an Art-Net or sACN node.
Yarilo
DMX Pro
1 Universe DMX Out RDM?
Yarilo
Open / Mini Open DMX
1 Universe DMX Out
FX5
FX5 DMX
powered by Digital Enlightenment
1 Universe DMX Out
Compatible
Generic FTDI FT232
1 Universe DMX Out
Use the Enttec USB Open driver
Art-Net & sACN nodes
DMXDesktop works with any Art-Net or sACN compliant node. The nodes below are recognised by name with live status icons - but you are not limited to this list.
Network nodes also feed DMX back into DMXDesktop as input on the Pro tier.
Control surfaces
MIDI controllers
Any class-compliant MIDI device works. Map anything to anything.
Put the cursor in the box for the command you want, press the key you want it on, and that is the binding made. Nothing has to match a preset layout. The controllers below get deeper, device-specific integration on top of that: pad colours, displays, motorised faders and feedback back to the unit.
SoundSwitch
Control One*v1.0.52
Per-state pad coloursVisualiser ringOLED status screen2 DMX outputsShips mapped
Also a supported USB DMX interface, listed above. One unit, both jobs.
Akai Professional
APC Mini MK2v1.0.52
Per-state pad coloursOn-screen visualiser
Akai Professional
APC Miniv1.0.52
Colours it can showScene Launch LEDsOn-screen visualiser
Akai Professional
APC40 MK2
Per-state pad coloursOn-screen visualiser
Akai Professional
MPD218
Single-colour pads
Behringer
X-Touch
Motorised fadersChannel displays
Native Instruments
Traktor Kontrol F1
Per-state pad colours
Native Instruments
Maschine Jam
Single-colour pads
Native Instruments
Maschine MK3
Single-colour pads
Pioneer DJ
DDJ-FLX4v1.0.52
DJ transport
Pioneer DJ
DDJ-1000v1.0.52
DJ transport
Numark
DJ2GO2 Touchv1.0.52
DJ transport
Supported controllers can now arrive with a default mapping already in place, so a new unit does something useful before you bind anything. The SoundSwitch Control One ships with a full default map. Every seeded binding is an ordinary binding, so you can change or delete any of it.
Pads carry two colours, one for when the bound thing is off and one for when it is on, and any pad can be set to blink. Right-click a pad in the MIDI visualiser to set them. On a controller with a limited palette the picker only offers the colours that unit can actually produce.
Not listed is not unsupported. A controller without its own map still binds to everything, it just does not get the colour and display extras.
Full compatibility matrix
Every supported device at a glance.
| Device | Connection | Universes | RDM | DMX Out | DMX In |
|---|---|---|---|---|---|
| USB interfaces | |||||
| DMX USB Pro Mk2Enttec | USB | 2 | ✓ | ✓ | - |
| DMX USB Pro Mk1Enttec | USB | 1 | ✓ | ✓ | - |
| ultraDMX MAXDMXKing | USB | 1 | ? | ✓ | - |
| ultraDMX2 PRODMXKing | USB | 2 | ? | ✓ | - |
| eDMX1 MAXDMXKing | USB | 1 | ✓ | ✓ | - |
| Open DMXEnttec | USB | 1 | - | ✓ | - |
| DMXIS (unlocked)Enttec | USB | 1 | - | ✓ | - |
| USB DMX Pro Mk2Eurolite | USB | 1 | - | ✓ | - |
| USB DMX Pro Mk1Eurolite | USB | 1 | - | ✓ | - |
| DMX ProYarilo | USB | 1 | ? | ✓ | - |
| Open / Mini Open DMXYarilo | USB | 1 | - | ✓ | - |
| FX5 DMXFX5 | USB | 1 | - | ✓ | - |
| Micro DMXSoundSwitch | USB | 1 | - | ✓ | - |
| Control OneSoundSwitch | USB | 2 | - | ✓ | - |
| USB-DMX512AVT | USB | 1 | - | ✓ | - |
| Generic FTDI FT232Compatible | USB | 1 | - | ✓ | - |
| Art-Net / sACN nodes | |||||
| eDMX8 MAXDMXKing | Art-Net / sACN | 8 | ✓ | ✓ | ✓ |

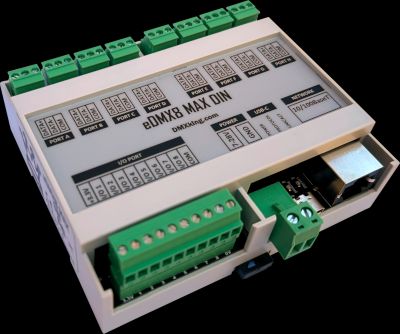

| eDMX8 MAX DINDMXKing | Art-Net / sACN | 8 | ✓ | ✓ | ✓ |
| eDMX4 MAXDMXKing | USB / Art-Net / sACN | 4 | ✓ | ✓ | ✓ |

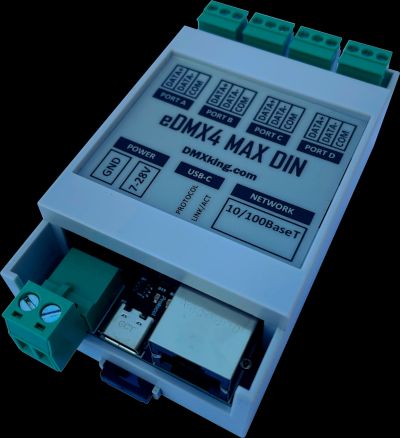

| eDMX4 MAX DINDMXKing | Art-Net / sACN | 4 | ✓ | ✓ | ✓ |

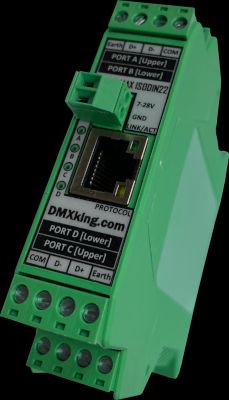

| eDMX4 MAX ISODINDMXKing | Art-Net / sACN | 4 | ✓ | ✓ | ✓ |
| eDMX2 MAXDMXKing | USB / Art-Net / sACN | 2 | ✓ | ✓ | ✓ |

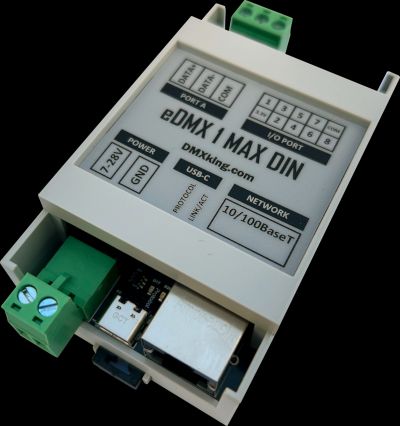

| eDMX1 MAX DINDMXKing | Art-Net / sACN | 1 | ✓ | ✓ | ✓ |
| eDMX2 PRODMXKing | USB / Art-Net / sACN | 2 | ? | ✓ | ✓ |
| Netron EN4Obsidian | Art-Net | 4 | ✓ | ✓ | ✓ |
| Netron EP4Obsidian | sACN | 4 | ✓ | ✓ | ✓ |
| ODE Mk3Enttec | Art-Net / sACN | 2 | ? | ✓ | ✓ |
| DMX-AN2Chauvet DJ | Art-Net / sACN | 2 | - | ✓ | ✓ |
| Art-Net nodeShowtec | Art-Net | 2 | ? | ✓ | ✓ |
| CR011R Art-Net NodePknight | Art-Net | 1 | - | ✓ | ✓ |

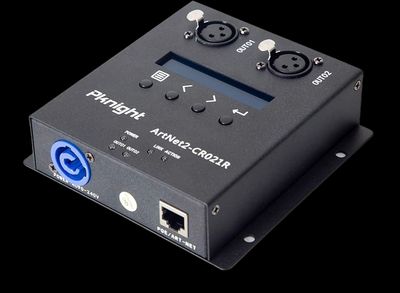

| ArtNet2 CR021RPknight | Art-Net | 2 | - | ✓ | - |
Reading the matrix
- ✓RDM supported and verified
- ?RDM-capable hardware - not yet verified in DMXDesktop
- -No RDM
- ↗Sends DMX out to your fixtures
- ↘Captures DMX into DMXDesktop (Art-Net / sACN, Pro tier)
A "?" means the hardware claims to support RDM, but RDM has not yet been verified in DMXDesktop - it is not a guarantee of support.
Don't see your device?
Most generic FTDI FT232 interfaces work with the Enttec USB Open driver. If yours isn't listed, get in touch and we'll do our best to add it.
Contact supportFor manufacturers
Make DMX hardware?
We work directly with manufacturers and distributors to keep this compatibility list accurate, complete and up to date. If you build DMX interfaces, Art-Net / sACN nodes or RDM gear, we'd love to hear from you.
Get listed & verified
We'll add your device to the matrix. If you're able to provide a sample unit, we can verify its output, input and RDM status first-hand.
Spot something wrong?
If a spec, capability or RDM status shown here is inaccurate, tell us and we'll correct it.
Certify compatibility
Want official confirmation your device works with DMXDesktop? We'll test it and document the result.
Hardware FAQ
Can I capture DMX input over USB?
Not currently. USB DMX interfaces are output-only in DMXDesktop. To bring DMX into the software, use an Art-Net or sACN node - DMX input is available on the Pro tier.
Which interface should I buy?
For a single universe, any Enttec USB DMX Pro or compatible interface is a safe, well-supported choice. For multiple universes or DMX input, an Art-Net / sACN node such as a DMXKing eDMX or Enttec ODE gives you the most flexibility.
Does my generic no-name USB DMX dongle work?
If it is built on the FTDI FT232 chipset with a DMX output stage, yes - select the Enttec USB Open driver. UART-only interfaces without a DMX512 stage are not supported.
How many universes can one USB interface drive?
Most USB interfaces handle one universe; some, such as the Enttec Pro Mk2 and DMXKing ultraDMX2 PRO, handle two. DMXKing offers many variants, so check the model's spec. For more universes, run multiple interfaces or move to Art-Net / sACN.
My device isn't in the list - can you add it?
Contact us with the make and model. If it speaks a protocol we can support, we'll do our best to add it.
Which MIDI controllers does DMXDesktop support?
Any class-compliant MIDI controller, and you can map any control to any function. A shortlist of controllers gets device-specific extras on top: per-state pad colours on the Akai APC Mini MK2 and APC40 MK2, motorised faders and channel displays on the Behringer X-Touch, and per-pad colours, the visualiser ring and the OLED status screen on the SoundSwitch Control One.
Can one device be my DMX interface and my control surface?
Yes. The SoundSwitch Control One is both: DMXDesktop drives its two DMX outputs as ordinary universes and its pads, ring and OLED screen as a MIDI surface, at the same time. Any universe can go to either of its outputs.
* Supported via our own independently developed driver. DMXDesktop is not affiliated with or endorsed by SoundSwitch or inMusic Brands.
Art-Net™ is a trademark of and © Artistic Licence Holdings Ltd. sACN (ANSI E1.31) is a standard of ESTA. All other product names, logos and trademarks are the property of their respective owners and are shown for identification only.
