DMX Table

The DMXTable helps you to diagnose issues with your fixtures, it shows a live representation of the output to each Universe, per each device (Artnet, sACN, or USB DMX) which is updated every 100ms.

You can see a representation in a table format of the live output per channel, and if you hover over a channel you can get information about what that channel is assigned to.

This can be extremely useful in helping to debug issues with your lighting fixtures configuration.

You can access the DMX Table either from the Settings, DMX Table tab, or as a pop out window via the DMX Table link on the Stages panel of the Console.

DMX Table Views

The DMX Table can be accessed from Settings or as a pop-out window from the Console.

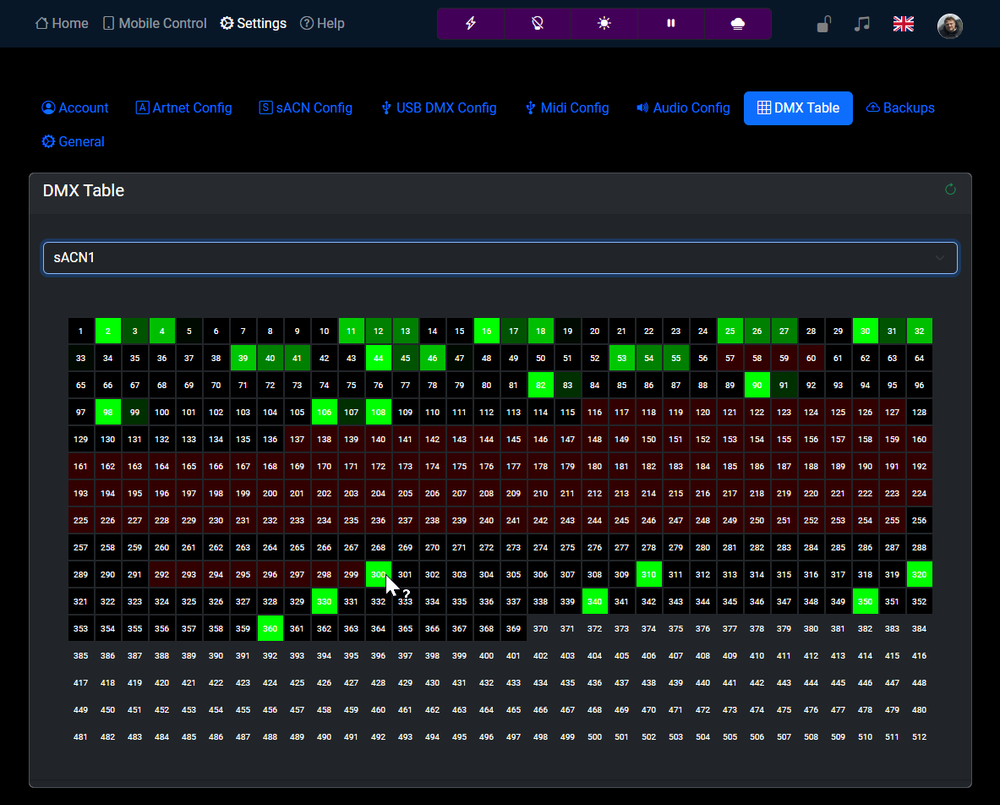

DMX Table - From Settings

Pop-out Window

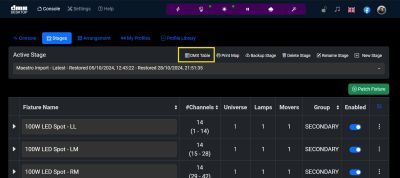

Open the DMX Table as a pop out window, from the Stages panel.

Open the DMX Table as a pop out window, from the Stages panel.

What is driving a channel

Hovering a channel tells you what it is assigned to and what is currently driving it. Channels driven by the Show Timeline used to report nothing at all, which read as "nothing is driving this" while the timeline was actively driving it. Fixed in v1.0.52.

For the whole picture rather than a single channel, see DMX Doctor, which has its own channel table showing what is genuinely going out on the wire, and the Output window's Sources view, described on DMX Channel Priorities, which shows every source acting on the rig at once and what is blocking what.
